Point Fittings for Glass Railing
Point Fittings for Glass Railing
- Material Options:
- Stainless Steel: Grade 304 (interior use), Grade 316 / 316L (outdoor, marine environments)
- Aluminum: For lightweight systems
- Brass or Zinc Alloy: (for decorative or non-structural applications)
- Finish / Surface Treatments:
- Satin / Brushed
- Mirror Polish
- Powder-Coated (available in custom RAL colors)
- PVD Coated (gold, black, bronze, or custom finishes)
- Types of Point Fittings:

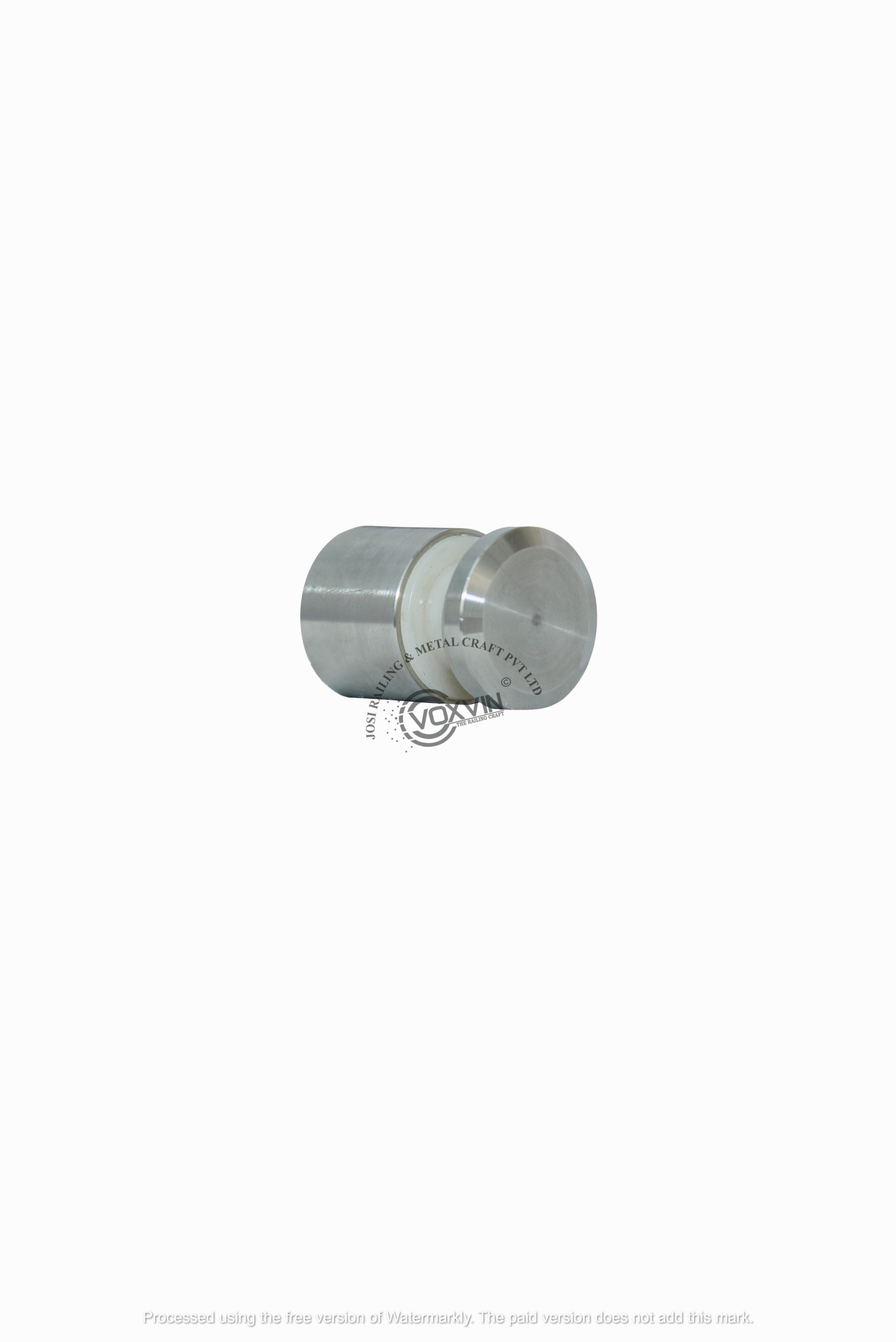

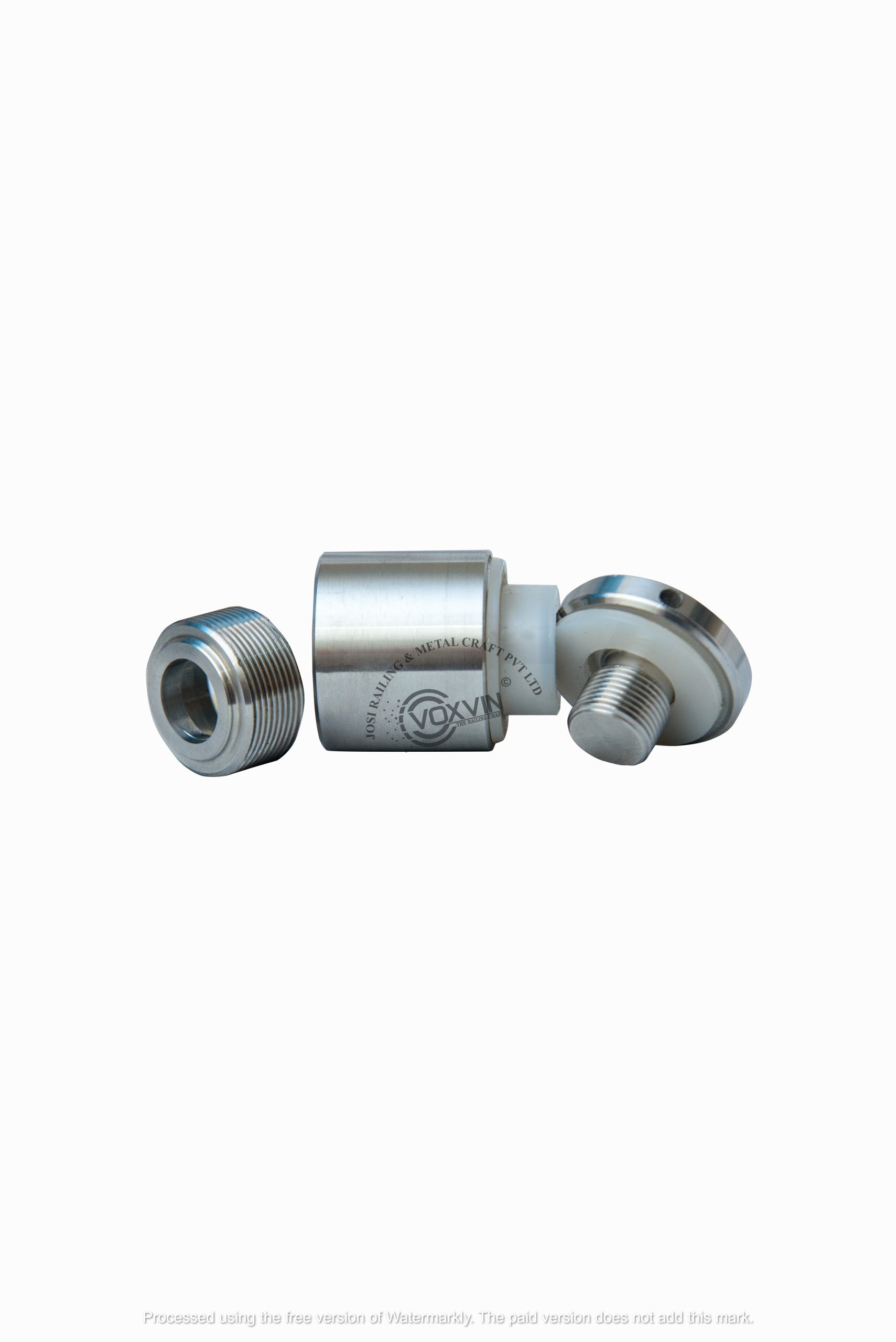

- Standoff Bolts / Spacers – Single point connectors for glass-to-wall or post
- Spider Fittings – Multi-arm fittings (2-arm, 3-arm, 4-arm) for glass-to-glass or glass-to-structure

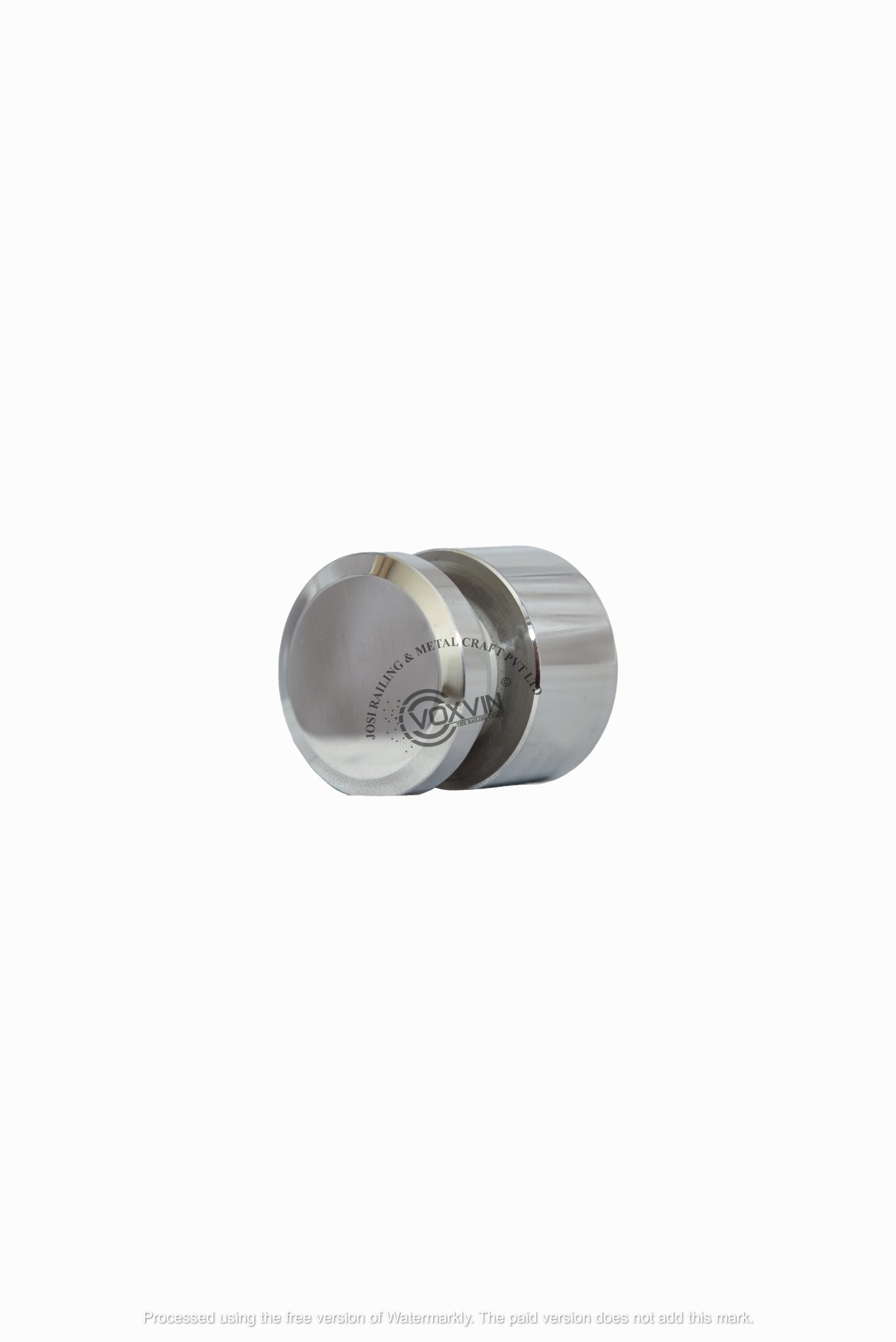

- Button Head Fittings – For clean face-mount installations
- Articulated Point Fittings – Allow for slight angle adjustments (e.g., for curved glass)
- Glass Compatibility:
- Suitable for tempered or laminated glass
- Glass thickness: 8mm to 25mm
- Pre-drilled glass with countersunk or straight holes required
- Mounting Options:

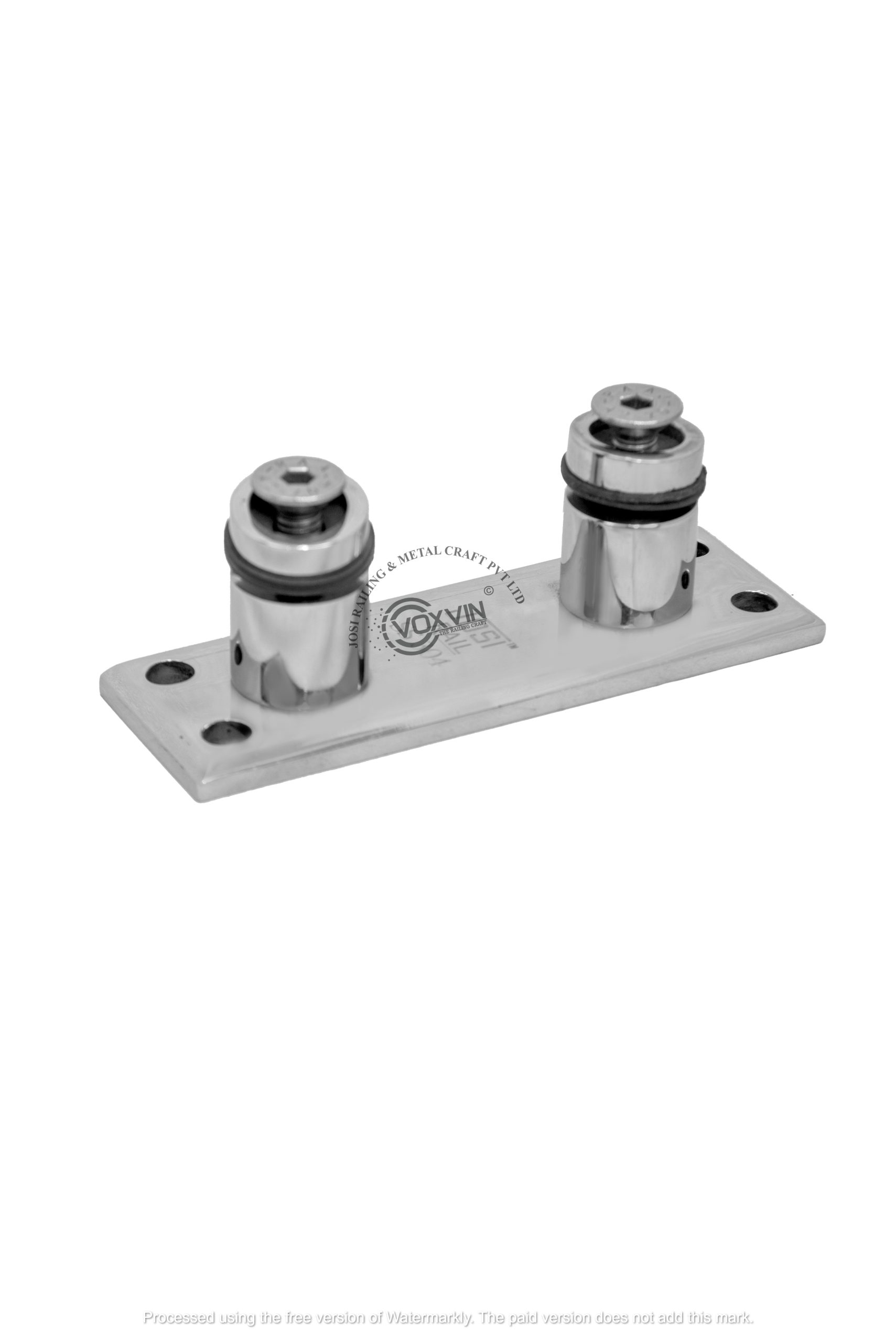

- Wall-mounted, post-mounted, or floor-mounted
- Fixed or adjustable (angle-adjustable versions for staircases/sloped railings)
- Available with rubber gaskets or nylon sleeves to prevent glass damage
- M12, M14, or custom thread sizes (depending on load requirements)
- Mechanical Features:
- High load-bearing capacity for structural glazing
- Vibration-resistant and corrosion-resistant
- Concealed or visible fixing options
- Flush or protruding button heads depending on aesthetic preference
- Optional Features:
- Anti-theft or tamper-resistant heads
- Custom logo engraving or branding
- Adjustable stand-off distance (10mm–100mm or more)
- Matching washers and caps for a seamless loo
Applications:

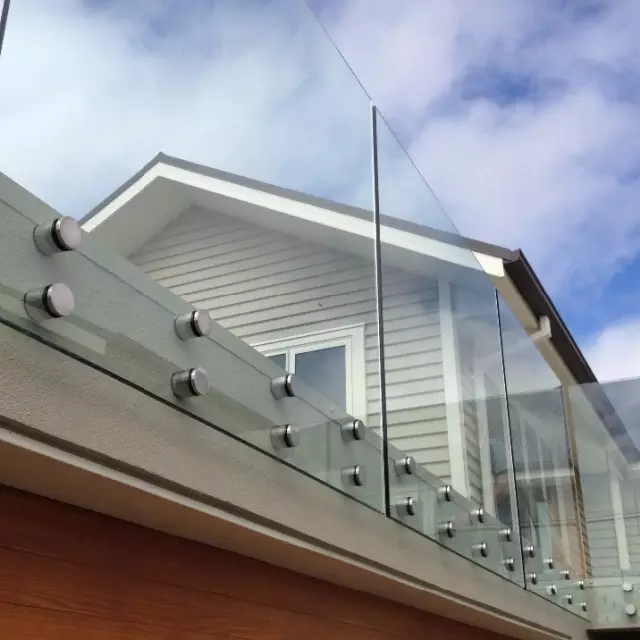

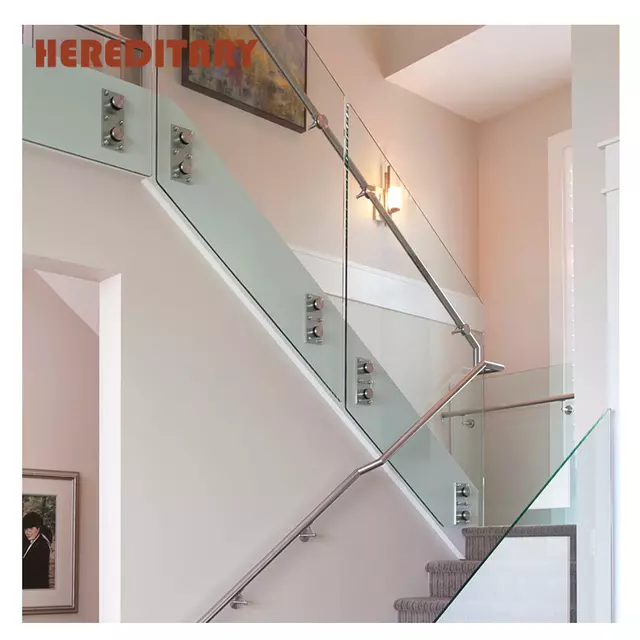

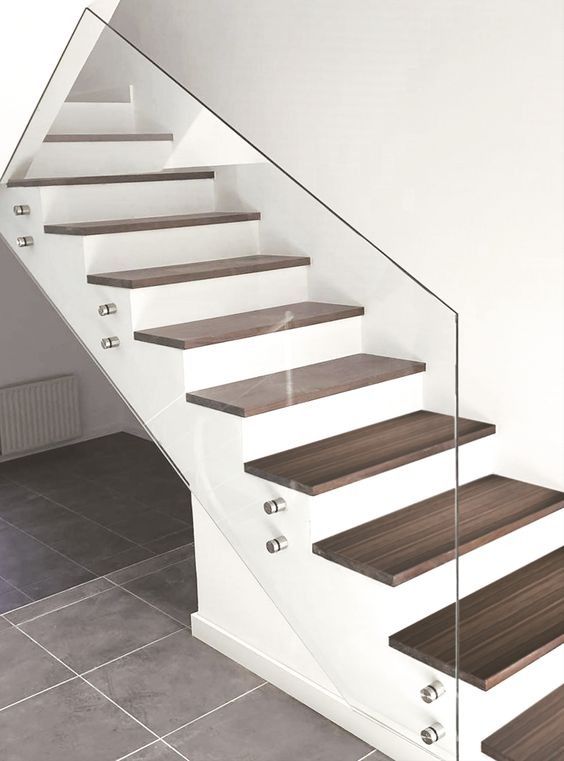

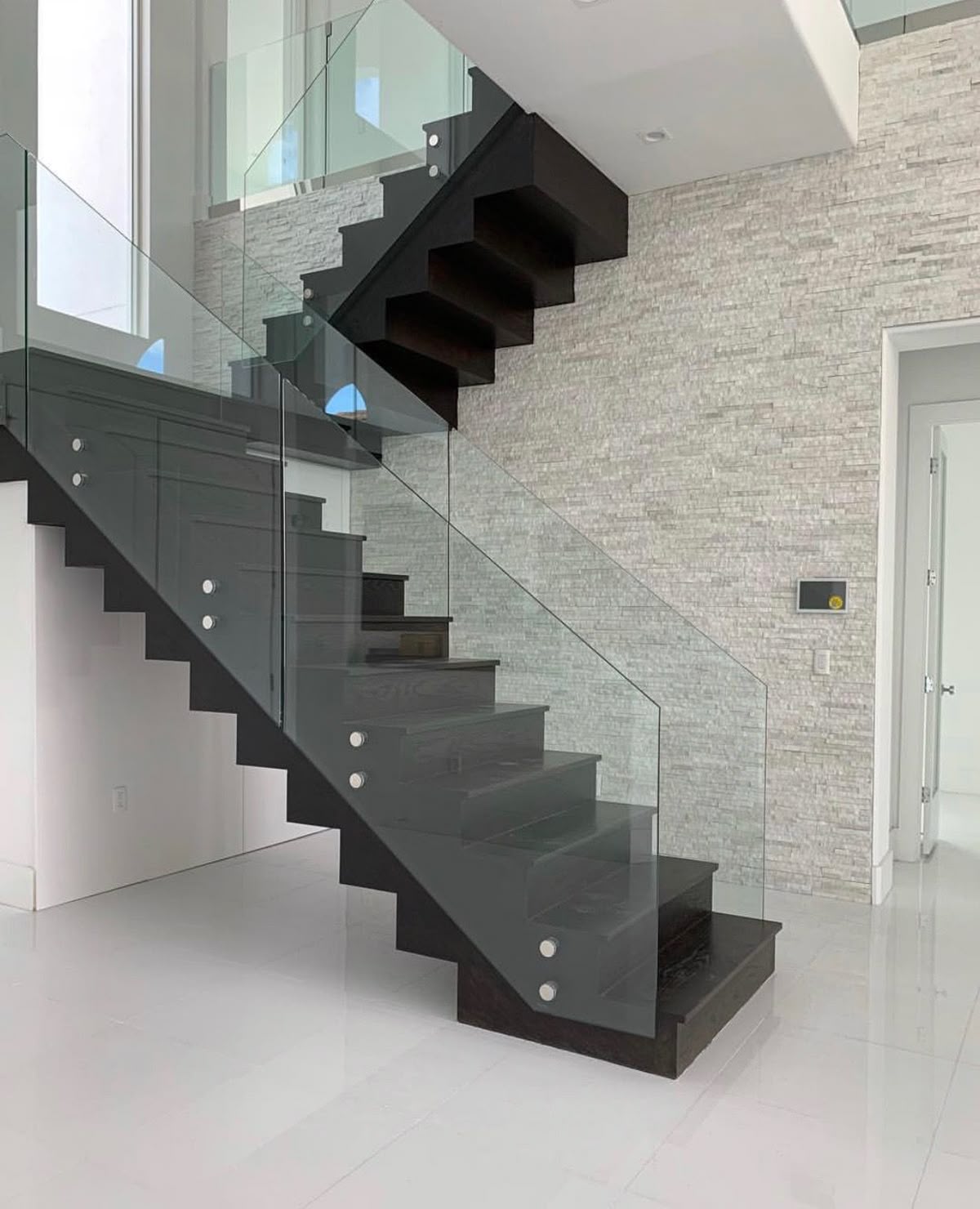

- Frameless glass railing systems in balconies, staircases, terraces, and landings
- Glass curtain walls, canopies, and facades
- Glass balustrades in residential, commercial, and public buildings
- Swimming pool enclosures and skywalk railings
- Indoor and outdoor architectural glass systems
- Ideal for minimalist, modern design projects where transparency and clean lines are key
- Used in airports, malls, offices, hotels, museums, and other high-end developments
